How to Select and Install Whipcheck Safety Cables: A Complete Guide for Rigging Engineers

The Ultimate Industrial Guide to Whipcheck Safety Cables: Selection, Installation, and Safety Standards

In high-pressure fluid and air transmission, a sudden coupling failure can turn a standard industrial hose into a lethal, whipping weapon. According to international safety regulations like OSHA, ensuring worker safety requires robust risk-mitigation tools. Among them, the whipcheck safety cable is the most reliable, cost-effective mechanical safety device available today. As an established wire rope factory, wirerope-sling.com delivers heavy-duty, premium-grade safety slings trusted by global rigging professionals.

Figure 1: Standard double-loop galvanized wire rope whipcheck securing a pneumatic hose line.

What is a Whipcheck Safety Cable and How Does It Work?

A whipcheck safety cable (also known as a hose safety sling or whip check) is a high-tensile wire rope assembly equipped with spring-loaded loops on both ends. It spans across a hose-to-hose or hose-to-tool coupling joint.

If the primary coupling or clamp fails under pressure, the sudden kinetic discharge causes the hose to release violently. At this exact microsecond, the whipcheck's loops automatically constrict and choke the hose, absorbing the massive shock load and keeping the loose hose restricted within a safe, controlled radius.

⚠️ Crucial Safety Note for Operators:

Whipchecks must be installed in a fully extended, taut position. Any excess slack allows the failing hose to gather velocity, generating a severe dynamic shock load that could snap an improperly rated wire rope assembly.

Technical Specifications: Choosing the Right Whipcheck Size

Selecting the correct cable diameter based on your hose's Inner Diameter (I.D.) and operating pressure is vital for full compliance. Below are the industry-standard specifications engineered in our manufacturing plant:

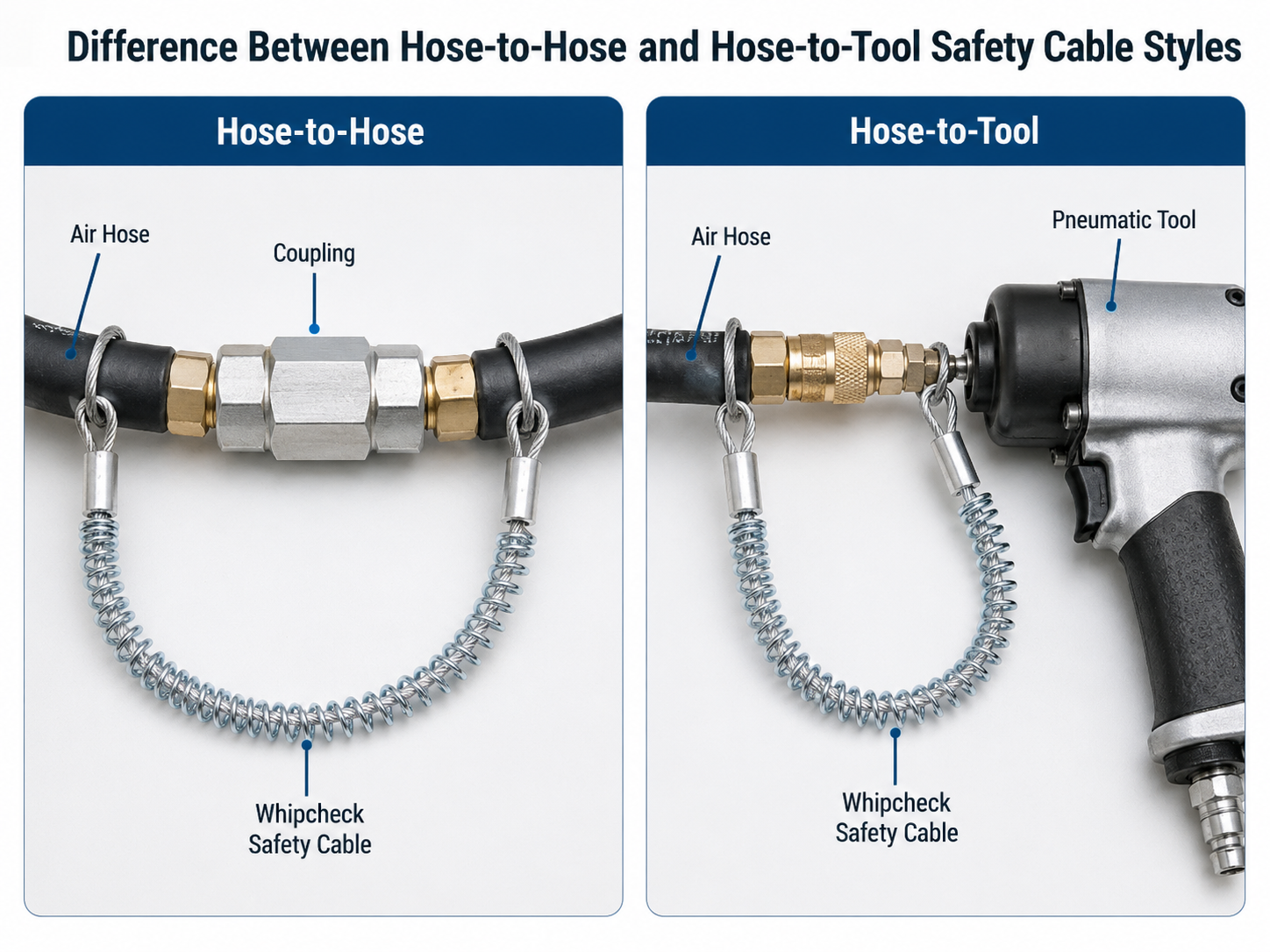

Hose-to-Hose vs. Hose-to-Tool: Understanding the Configurations

Depending on your piping layout, procurement managers must specify the exact wire rope assembly style:

• Hose-to-Hose (Style DM): Features spring-loaded loops on both ends. Used to secure two flexible hoses joined together.

• Hose-to-Tool / Hose-to-Rig (Style SB): Features one spring-loaded loop on one end and a large adjustable eye or shackle connection on the other. Used to attach a flexible hose directly to a rigid valve manifold, compressor port, or sandblast tank.

Figure 2: Close-up on the precision mechanical swaging and spring-loaded mechanism of our custom rigging slings.

Manufacturing Excellence: Inside Our Wire Rope Sling Plant

As an OEM wire rope sling factory, we don't cut corners. Foreign procurement agents choose us over trading companies because our hardware undergoes strict manufacturing processes:

1. High-Tonnage Hydraulic Swaging: Every ferrule (aluminum, copper, or carbon steel sleeve) is mechanically crimped under precise hydraulic metrics to ensure zero slipping under peak pressure ratings.

2. Premium Springs: We source corrosion-resistant steel springs that retain their memory, ensuring smooth operations during hundreds of compression routines.

3. Proof Loading & Traceability: Upon request, our test beds pull assemblies to verify ultimate tensile strength (UTS). We supply Mill Test Certificates (MTC) with every batch to meet OSHA and MSHA safety compliance.

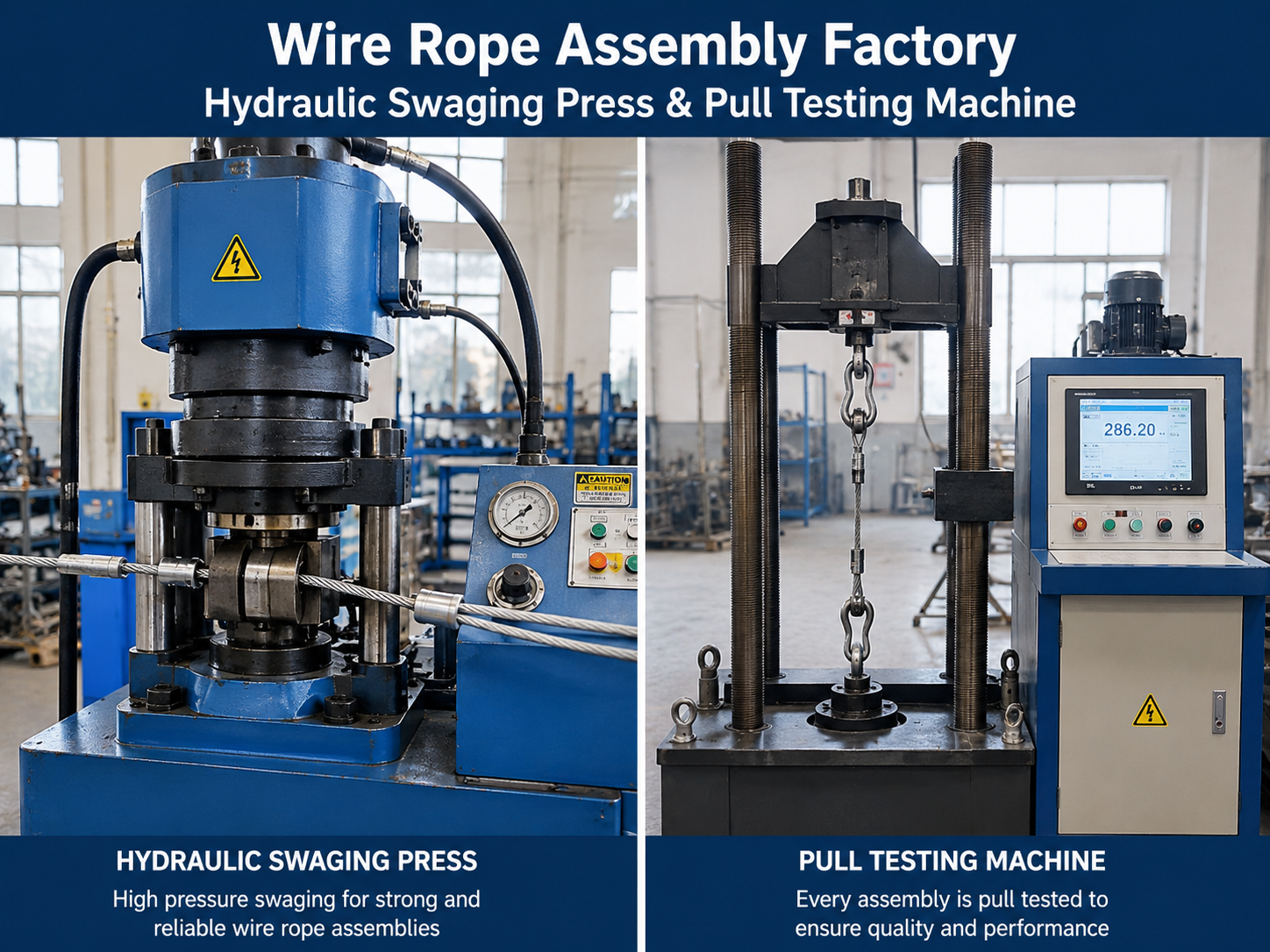

Figure 3: Our hydraulic testing facility ensuring every wire rope sling and safety lanyard meets rigorous pull ratings.

Get Factory-Direct Pricing for Bulk Wholesale Orders

Buying directly from the source guarantees consistent physical properties, fully customized lengths, and significantly lower overhead costs. Whether your operations require thousands of standard 1/4" galvanized whipchecks for commercial tool distribution or marine-grade SS316 custom wire rope assemblies for heavy offshore projects, our engineers are ready to assist.

Maximize your on-site safety and lower your liability costs today. Visit us at wirerope-sling.com to download our full load charts, or submit your exact rigging drawing to get a direct wholesale quote within 24 hours.
